It means moving from a horizontal building layout to a vertical view of a facade — here, an image-based concept workflow built on the existing editor rather than a dedicated architectural tool. Describe what your floor plan doesn’t show, such as heights or materials, and use the result to discuss design directions. Treat it as a visual starting point, not a replacement for a measured architectural drawing.

New accounts currently receive 20 registration credits that can support a limited trial, subject to the displayed model cost. You must sign in before generating, and each request needs enough available balance. Once the trial credits are used, further generation follows the normal rules, and download access stays the same as elsewhere on the site.

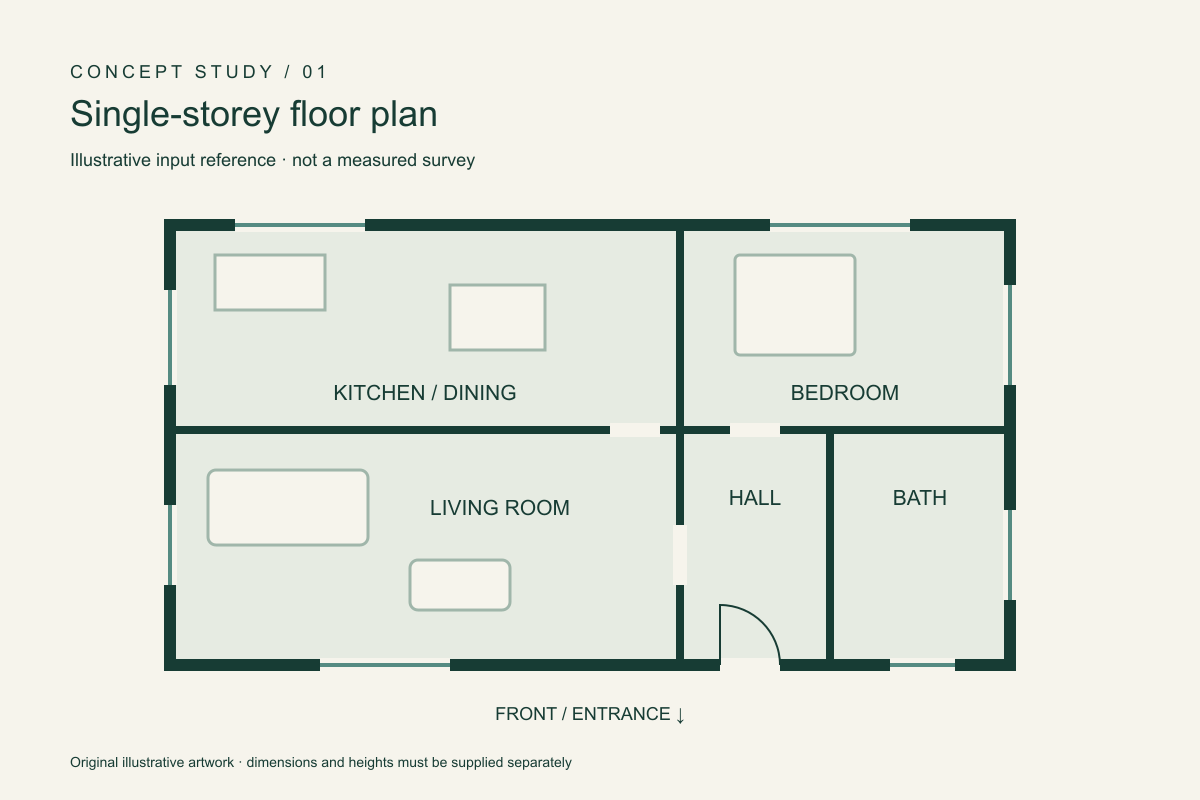

Choose a clear floor plan image with readable exterior walls, doorways, and windows. If your source is a PDF or drawing file, export it as an image first. Remove private names or addresses you don’t want to upload, and state which edge of the floor plan represents the front so the facade direction lines up with what you expect.

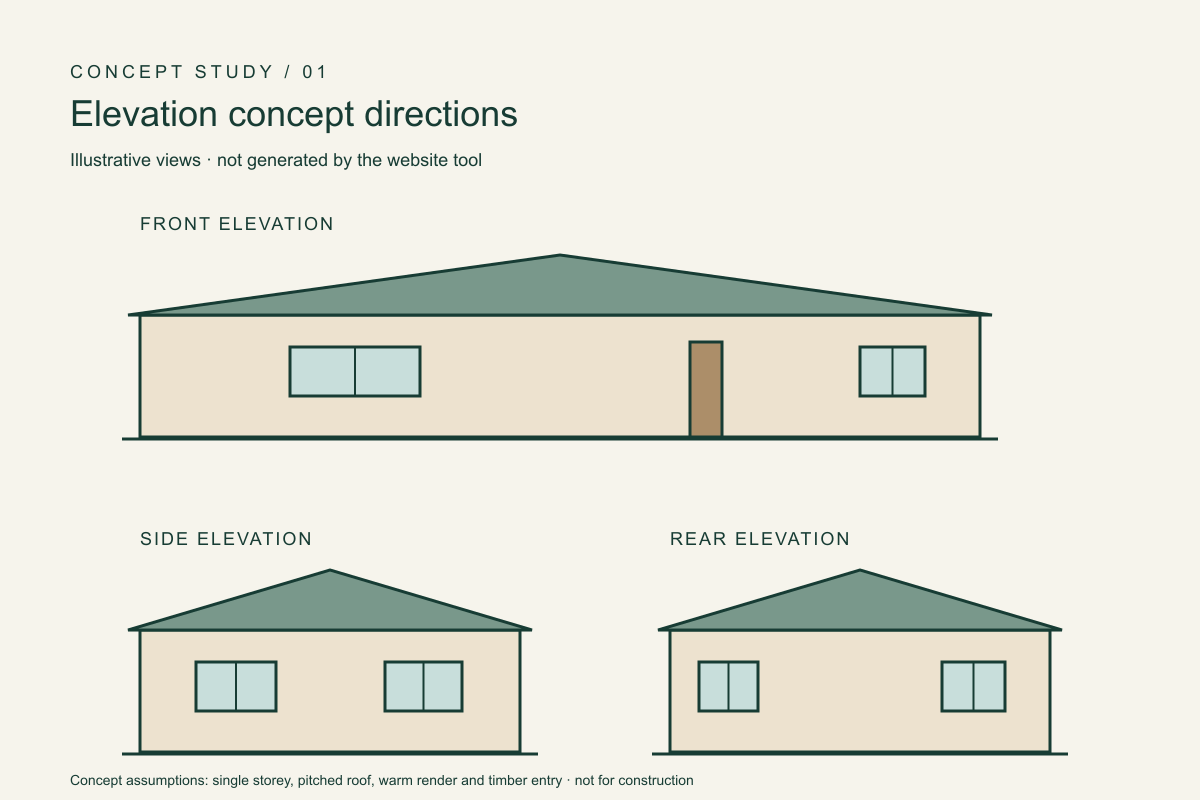

Each preset fills the editable requirements field with a starting direction and generates a concept for that single view, not a coordinated package of four drawings at once. Review one elevation before requesting another, and keep the same assumptions across attempts if you want to compare them side by side.

State the viewpoint, storey count, roof form, approximate heights, and preferred materials, and mention entrances or windows that should stay aligned with the floor plan. Keep instructions consistent rather than combining incompatible alternatives, and save a brief you like so future attempts on the same floor plan can reuse the same assumptions.

No — it cannot recover verified heights from information that’s absent from the uploaded floor plan. Provide the floor height, roof preferences, and opening proportions when you know them, and label any remaining assumptions in your notes. If accurate vertical dimensions matter, get measured information separately before deciding how the building should be documented.

No. This page produces visual concepts, not certified construction documents, structural calculations, or permit-ready drawings. Use it for early discussion and have the relevant details checked independently before physical work begins. Keep the original floor plan and a written list of assumptions alongside the image so reviewers can separate source information from interpretation.

You can describe several storeys in the brief, but the existing editor doesn’t automatically align a stack of separate floor plans into one coordinated model. Check the output for misplaced openings and inconsistent lines between each floor. Complex buildings need more source information and independent review — a plausible image alone doesn’t confirm the floor levels agree.

Compare a small set of material directions — light render, timber accents, or brick — and describe window frames and roof color if they matter to the overall composition. Focus on proportions and placement as well as atmosphere when reviewing a concept, since generated textures are suggestions rather than tested building products. Check real samples separately before choosing a finish.

This workflow uses the existing image result and download controls; it doesn’t add CAD, DXF, SVG, or editable architectural model exports. Treat a result as a reference image for discussion or later drafting. If you need editable linework, create and verify it separately in drafting software rather than assuming a traced image will preserve accurate geometry.

The workflow is a generative interpretation and may alter doors, windows, or proportions even when the prompt asks to preserve them. Repeat the constraints that matter most, then inspect the next result against the same floor plan. More words don’t guarantee a better outcome, and additional attempts use credits — keep useful ideas while treating unresolved differences as limitations, not approved changes to the building.

Document the facade direction you prefer — window rhythm, entrance treatment, roof outline, material palette — and discuss it with the people involved before commissioning detailed work. An elevation image is most useful when it leads to clearer questions and better source information about the actual floor plan. Confirm dimensions and feasibility independently before development continues.
